CE EN12150 Standard Resistance Glass Hearth Plate 6mm Thickness Tempered High Pressure
CE EN12150 Standard Resistance Glass Hearth Plate 6mm Thickness Tempered High Pressure
| Type: | Glass Hearth Plate | Material: | Glass |
|---|---|---|---|
| Color: | Transparent | Thickness: | 6mm~8mm |
| Width: | Customized | Height: | Customized |
| Finished: | Tempered | Shape: | Circular Cut |
| High Light: |
glass door fireplace screens, glass screen fireplace |
||

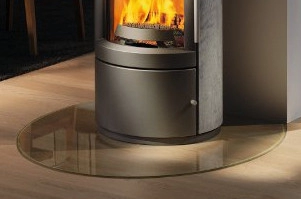

CE EN12150 Fireplaces Circular Cut 6mm / 8mm Tempered Glass Bottom Plate
About glass hearth for fireplace
6mm~8mm
| Processing | Edge grinding--Safety corners-- Tempered with CE mark--Package | ||||||||
| Edge finished | C-edge matt; C-edge polished; 18mm bevel edge | ||||||||
| Size(mm) | T | 500 | 800 | 1100 | 1100 | 1000 | 1100 | 1200 | 1250 |
| B | 500 | 800 | 850 | 1000 | 1000 | 1100 | 1000 | 1250 | |
C-Edge matt and corner
Bevel edge finished
Package
| Option 1 | bulk pack in a wooden box., cork pad between glass. |
| Option 2 | Corner protector at corner, packing by U foam,shrinked by clear plastic, fragile lable and product lable on side. |
| Option 3 | Corner protection, packing in individual carton box. |
Contact us, we will be happy to discuss and design for you.
About tempered glass
Tempered glass is manufactured through tempering process, with good mechanical property and heat resistance. It has a compressive stress layer on the surface, forming high pressure resistance.
Tempered glass’s compressive stress is 95 MPA when subjecting to external forces. And the layer can offset certain tensile stress to improve bearing capacity. Tempered glass’s bending strength is 3-5times stronger than normal glass. If the glass is broken, it will cause less damage to people.
| Advantage | Safety: When broken, tempered glass is to crumble into small granular chunks instead of splintering into jagged shards. The granular chunks are less likely to cause injury. |
| High strength: Comparing to the float or annealed glass, the impact resistance and bending resistance is 3~5 times. | |
| Thermal stability: Comparing to the float or annealed glass, Tempered glass can endure the difference in temperature 3~5 times. It can withstand 250℃ difference in temperature. |
