Insulated glass for window
| Shape: | Flat | Function: | Insulated Glass,Low-E Glass,Heat Reflective Glass,Heat Absorbing Glass |
|---|---|---|---|
| Technique: | Clear Glass,Tempered Glass,Coated Glass,Laminated Glass,Tinted Glass | Structure: | Hollow,glass + Argon Space + Glass |
| Type: | Float Glass,tempered Insulated Glass | Color: | Clear,Blue,grey,green,bronze |
| Thickness: | 3-25mm,4+6A+4;5+9A+5;8+12A+8 | Application: | Curtain Wall,window,Hotel,Skylights |
| Product Name: | Float Thermal Insulated Glass For Window Panes,Safe Glass Laminated Insulating Glass Price,silk Screen Insulated Glass,Factory Price Curtain Wall Tempered Noise Thermal Insulated Glass,pressure Resistance Thermal Coating Window Replacement Insulated Glass | Size: | Custom Sizes,Customized |
| Material: | Low E Glass,Reflective Glass Clear Glass,Float Glass / Low-e Glass / Laminated Glass | Usage: | Building,Windows,Skylights |
| Name: | Thermal Insulated Glass,IGU,Energy Saving Double Glazing 1\" Tempered Insulated Glass Price,Float Thermal Insulated Glass For Window Panes | Keywords: | Double Lowe Glass,Insulated Glass,Float Thermal Insulated Glass For Window Panes |
Double glazing glass

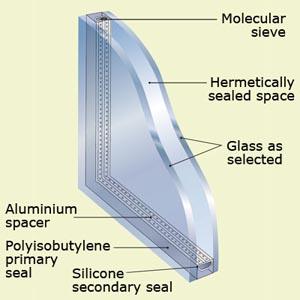

Double glazing glass is the glazing process in which a window is formed by two panes of glass with a space between the panes. The space between the glass is usually several millimeters thick. Air is trapped between the panes of glass and forms a layer of insulation. Before the unit is sealed, a drying agent is added to ensure that no moisture is present inside the finished glass unit
Around 60% of heat loss in the home occurs through standard, single pane windows. Double glazing substantially stops heat loss. The cost of the double glazing will pay for itself very quickly in the money you save from heating bills. Once the double glazing has been installed, your heating costs should decrease by around 10 to 12%.
Features:
1. Energy Saving: For the low heat conductibility of the sealed air between the glass, the insulated glass can reduce heat transfer from inside to outside. Therefore, it can save energy by 30%-50%.
2. Sound Insulation Performance: Single layer glass can reduce noise to 20-22db.Normal insulated glass can reduce noise to 29-31 while special insulated glass to 45db.
3. Anti-dew: Insulated glass is filled enough desiccant which can efficiently absorb vapor in the inner space or penetrated from outside to ensure the gas in inner space is absolutely dry and won’t dew.
Applications:
Glass curtain wall and light absorption shade of residential area, hospital, office building, shopping mall, hotel and library and other places that need keeping warm, saving energy and keeping silent.
Specification:
Size: according to customer’s requirements
Aluminum Frame thickness: 6mm, 9mm, 12mm, 15mm
Thickness: 3-20mm
Quality:
In accordance with GB/T 11944-2002 Chinese Insulating Glass Standard
Pass Chinese Safety Glass Compulsory Certification (CCC)
